Deluxe Reverb
Based on the original blackface fender AB763 deluxe Reverb, with a few mods and improvements.
All Australian made, Hand Crafted and Hand wired, using only the finest electronic components. Switchcraft jacks, Sprague Orange drop capacitors, Sprague & F&T Electrolytic Capacitors. Audio circuit Resistors are modern carbon film resistors instead of the noisier, period correct carbon composition found in the original Deluxe Reverb. Carbon film resistors generate less hiss than carbon comp resistors. option of metal film resistors. All mounted on an original style Eyelet board.
Quality Belton Valve Sockets
Using the finest Hammond, Mains Transformer, output Transformers, Choke and reverb transformer. with the option of murcury usa
transformers.
accutronics spring reverb tank
2 switch footedal, for reverb & Tremelo
Choice of Quality Valves. From Mullard, Electro Harmonics, and NOS AWV output Valves.
A few little modifications from the Original Fender Deluxe Reverb. Including added Screen resisitors to the power output Valves, for added protection agains excessive screen current, and slightly altering the overdrive tone for the better. A Class X cap has also been added across the mains hot and neutral conductors to reduce power line noise.
Improved grounding and by using a brass plate behind all pots and jacks, and elevating the heater wires to minimise hum..
slightly Improved layout guarantees lower noise and best tone possible.
combo version of the deluxe reverb is also an option.
Various colours of Tolex available.

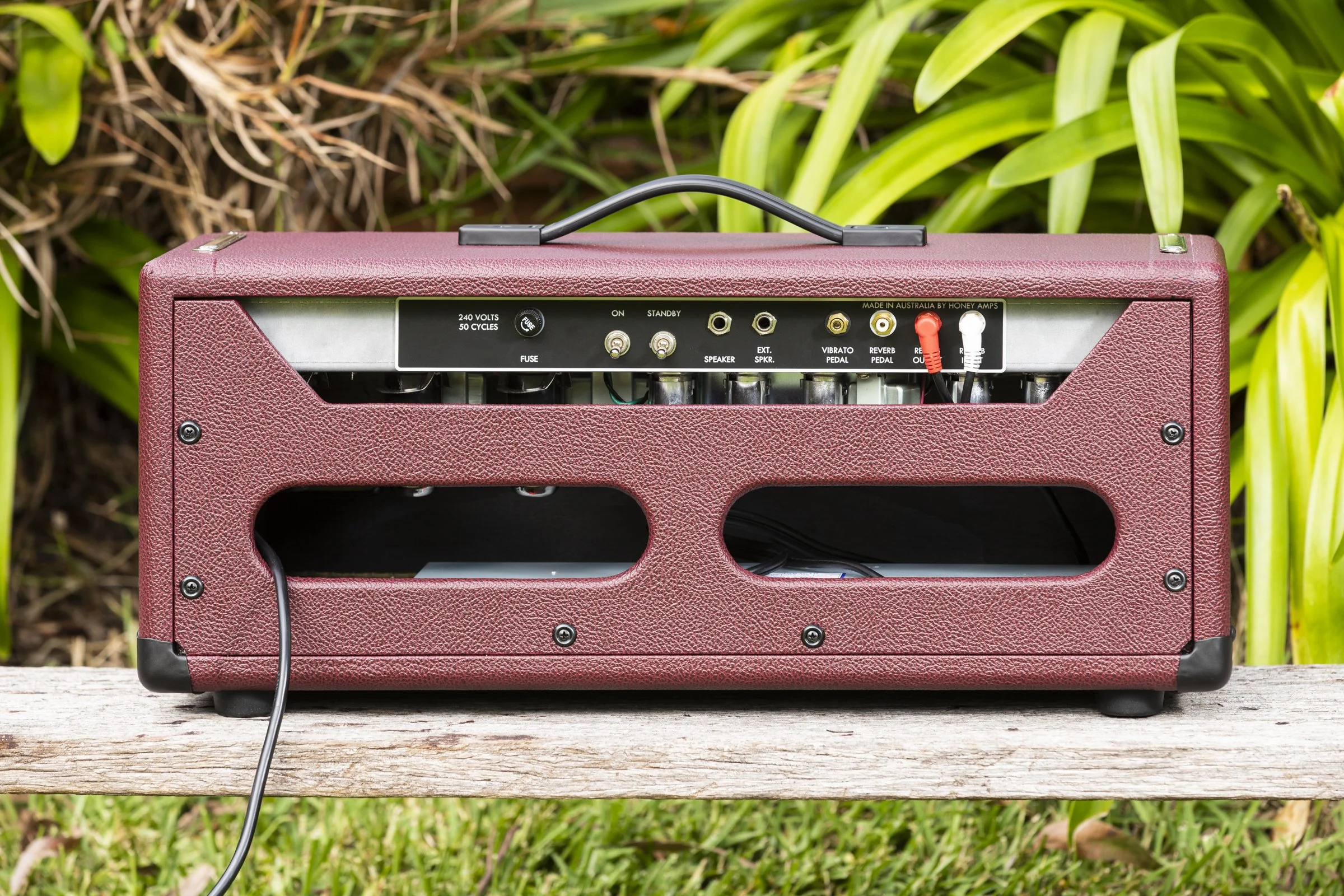

22-watt tube amp - in a head!
22 watts into 8 ohms
2 channels - normal and vibrato
Tube-driven spring reverb
Tube tremolo
2-button footswitch
Normal channel controls include volume, treble, and bass,
Vibrato channel controls include volume, treble, bass, and reverb
Cabernet Bronco textured vinyl covering tan brown wheat grille cloth
4 x 12AX7 tubes, 2 x 12AT7 tubes, 2 x 6V6 tubes, and 1 x 5AR4 rectifier tube
As of January 2022, All complete amps come with a 5 year warranty, from date of purchase, against defects in workmanship. Tubes and reverb tanks are warrantied for 30 days.
contact me for more info.
